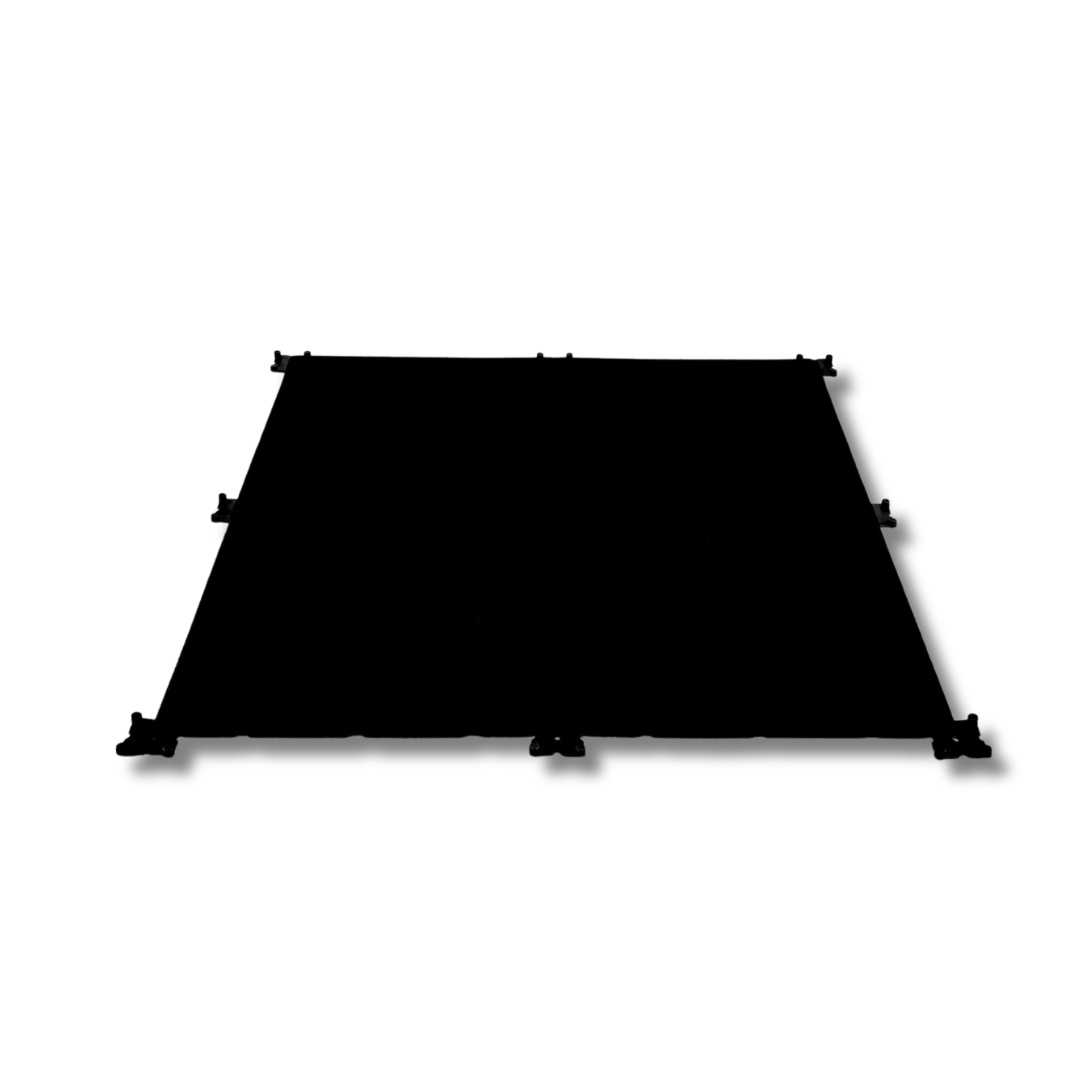

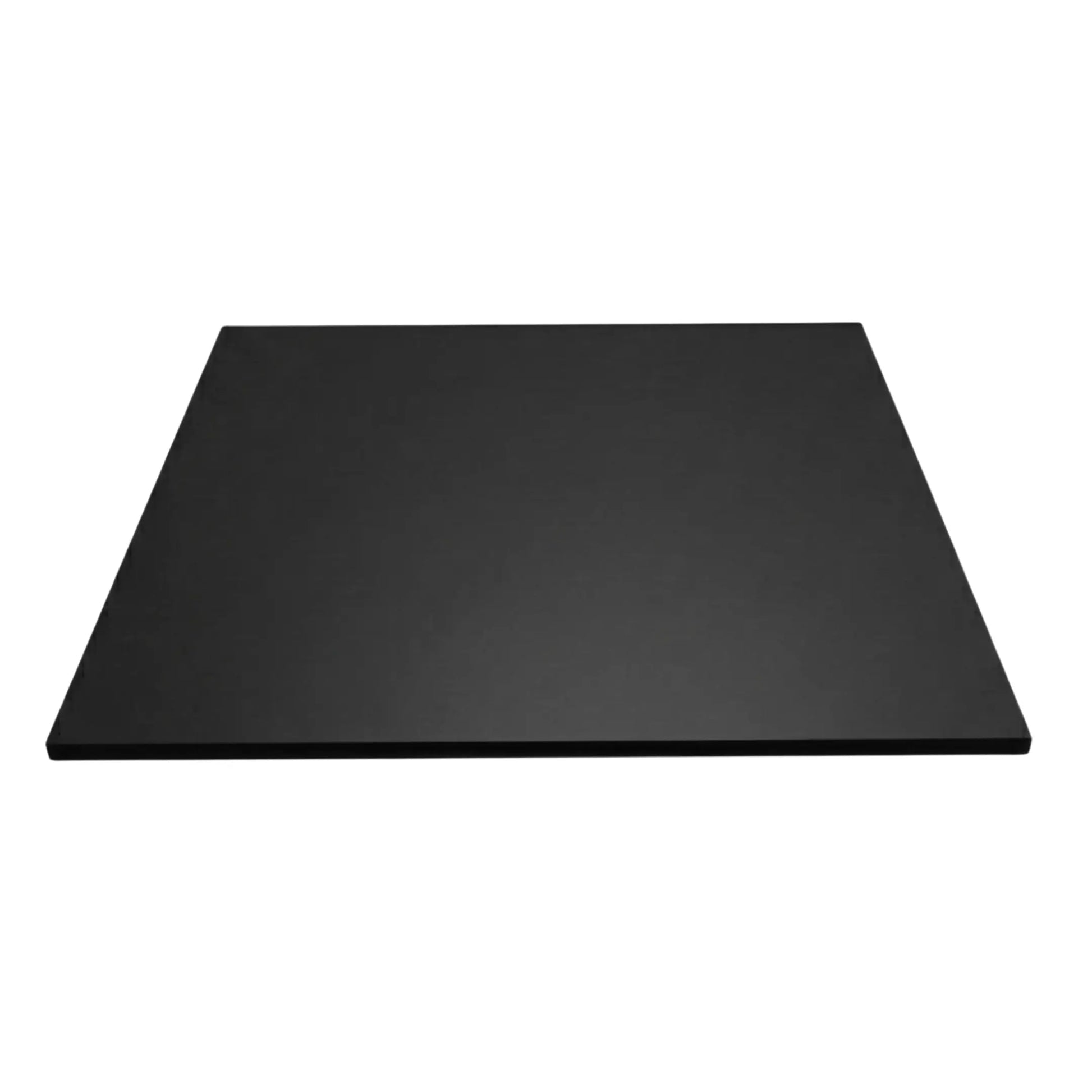

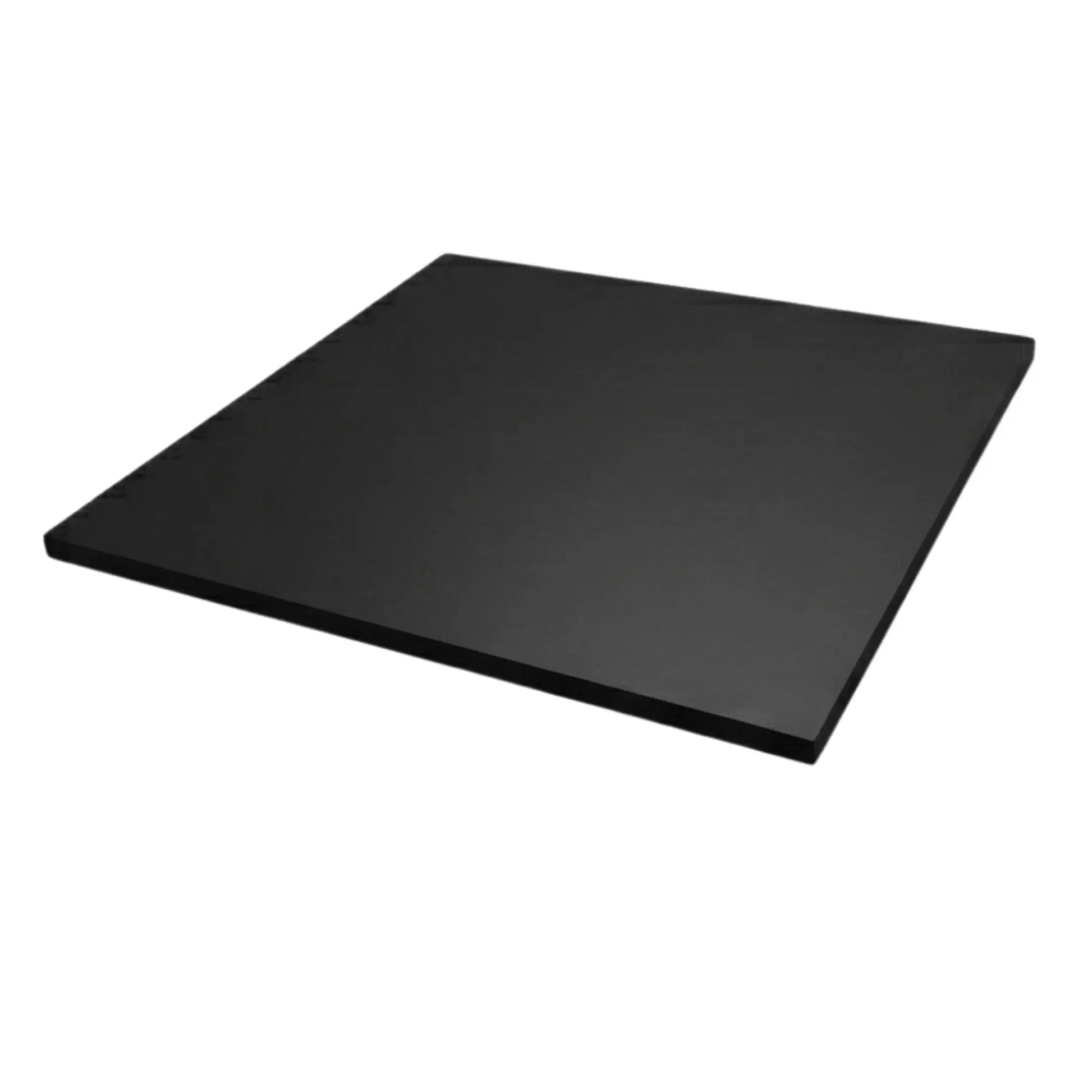

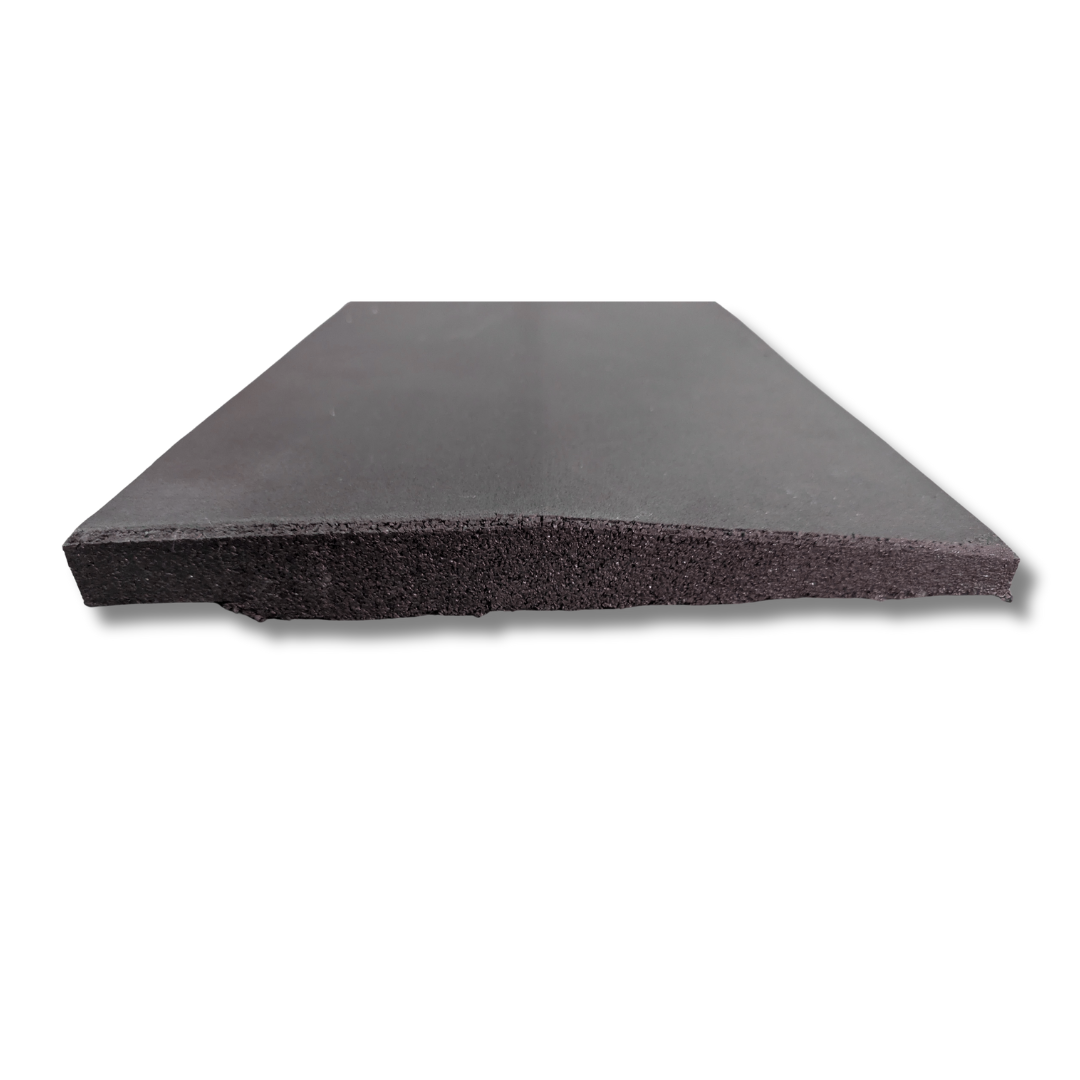

20mm EPDM Interlocking Premium Gym Mat

Key Features

Durable, protective construction

• 20mm thick tile designed to absorb impact and support demanding training environments

• Rated for loads up to 140kg, suitable for free weights, drop zones and multi-purpose gym areas

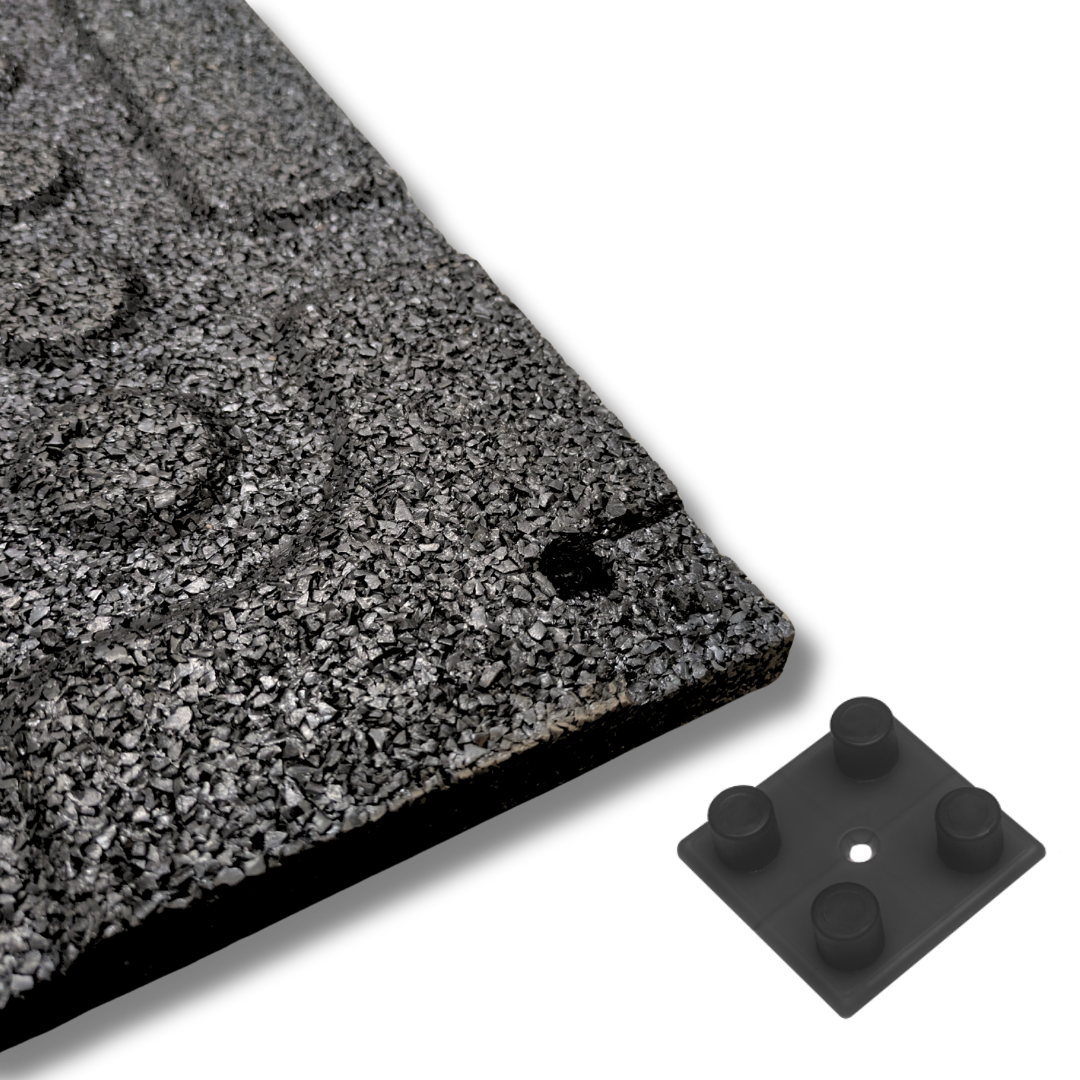

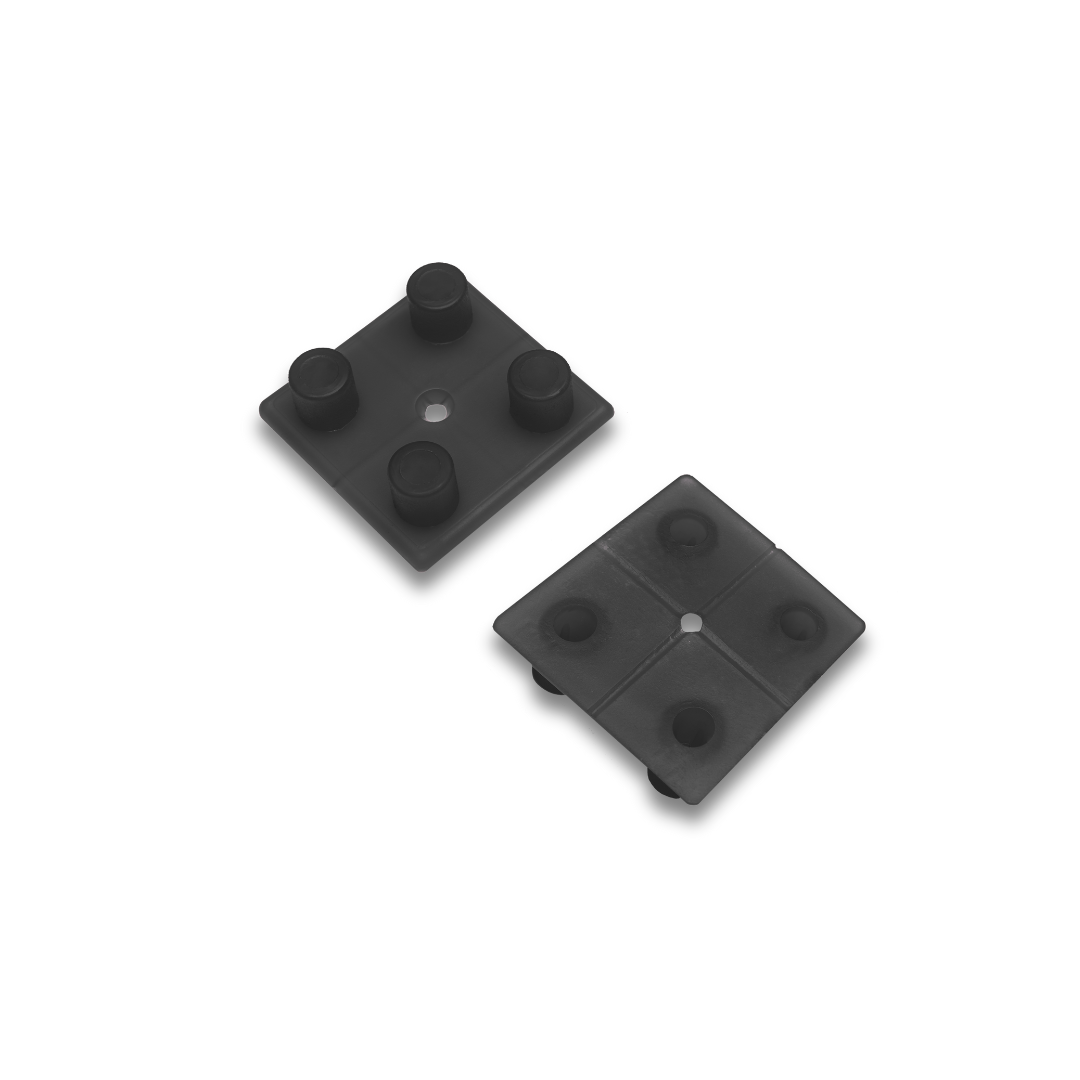

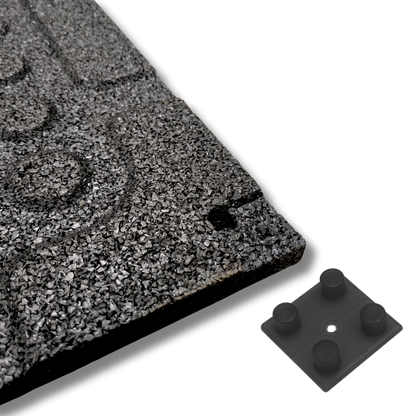

• Integrated interlocking connectors hold tiles firmly together to prevent movement

Hard-wearing, easy-clean surface

• Smooth EPDM rubber top layer provides excellent wear resistance, UV stability and a premium finish

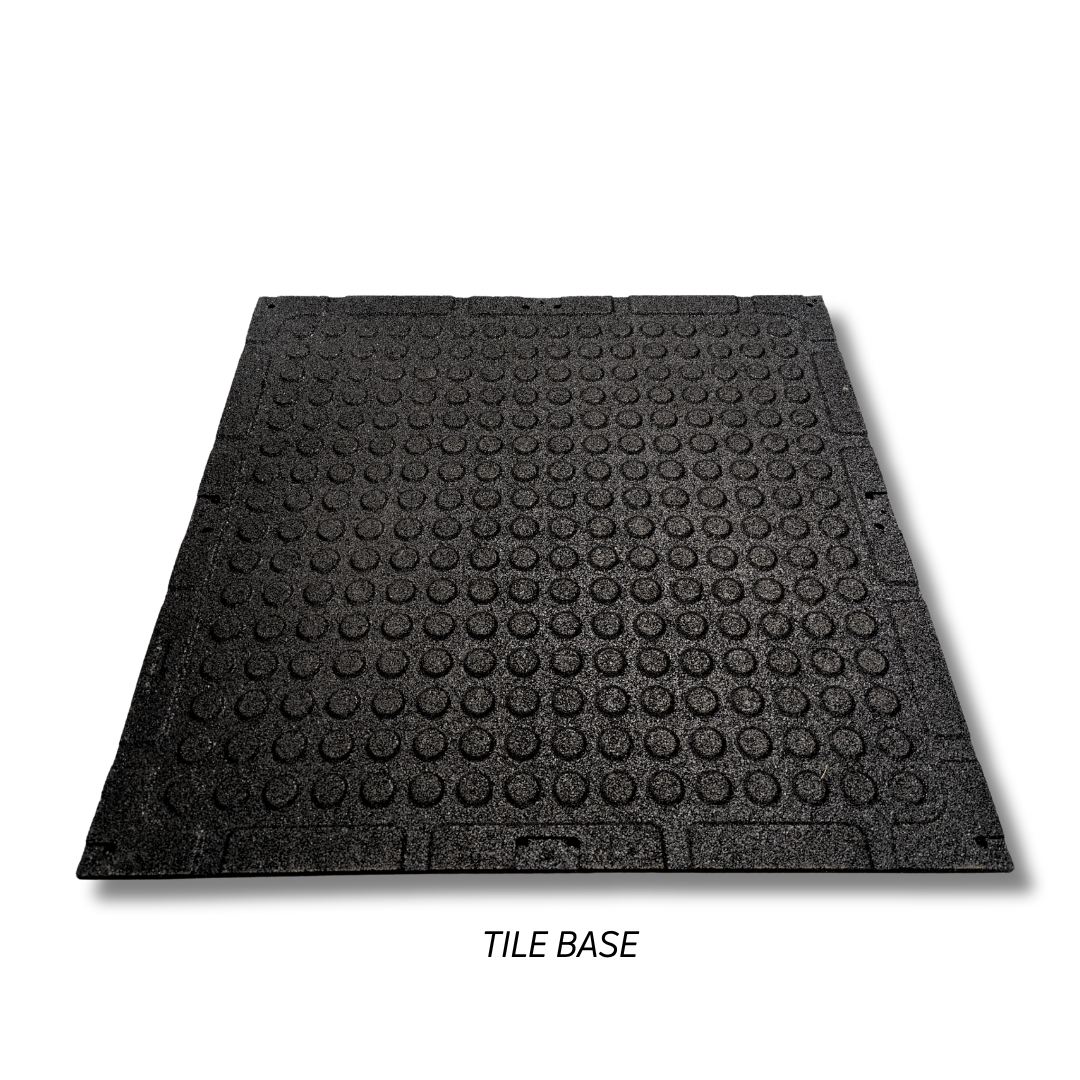

• SBR granualar base layer for support and impact absortion

• Easy to maintain — simply mop or wipe clean

Suitable for multiple training zones

• Free weight and strength areas

• Functional training spaces

• Cardio and conditioning zones

• HIIT, bootcamps and circuit classes

• Core and bodyweight training areas 💪

Data Sheet

• Dimensions: 1000mm x 1000mm
• Thickness: 20mm
• Shape: Square
• Colour: Matt Black
• Installation: Interlocking Connection
• Maximum Weight Drop: 140kg

• Material Properties: Tough elastic structure with high compression resistance and strong impact absorption
• Composition: Base – 10% SBR rubber bonded with 8.4% PU | Surface – Smooth EPDM rubber

• Width Tolerance: +/-2%
• Length Tolerance: +/-2%
• Thickness Tolerance: +/-5%
• Slip Resistance (Dry): ≤105 PTV | PN-EN 13036
• Slip Resistance (Wet): ≤75 PTV | PN-EN 13036-4:2004
• Abrasion Resistance: ≤560 mg | PN-EN ISO 5470-1:2001
• Tensile Strength: ≥0.65 MPa
• Elongation at Break: ≥40 | PN-EN 12230:2005
• Hardness: 55–75 | PN-ISO 868 PN-93/C-04206
• Density: 950–1000 kg/m³ | PN-EN ISO 845:2010
• Fire Classification: Efl S1
